Manually controlled hydraulic spray foam machine for professionals

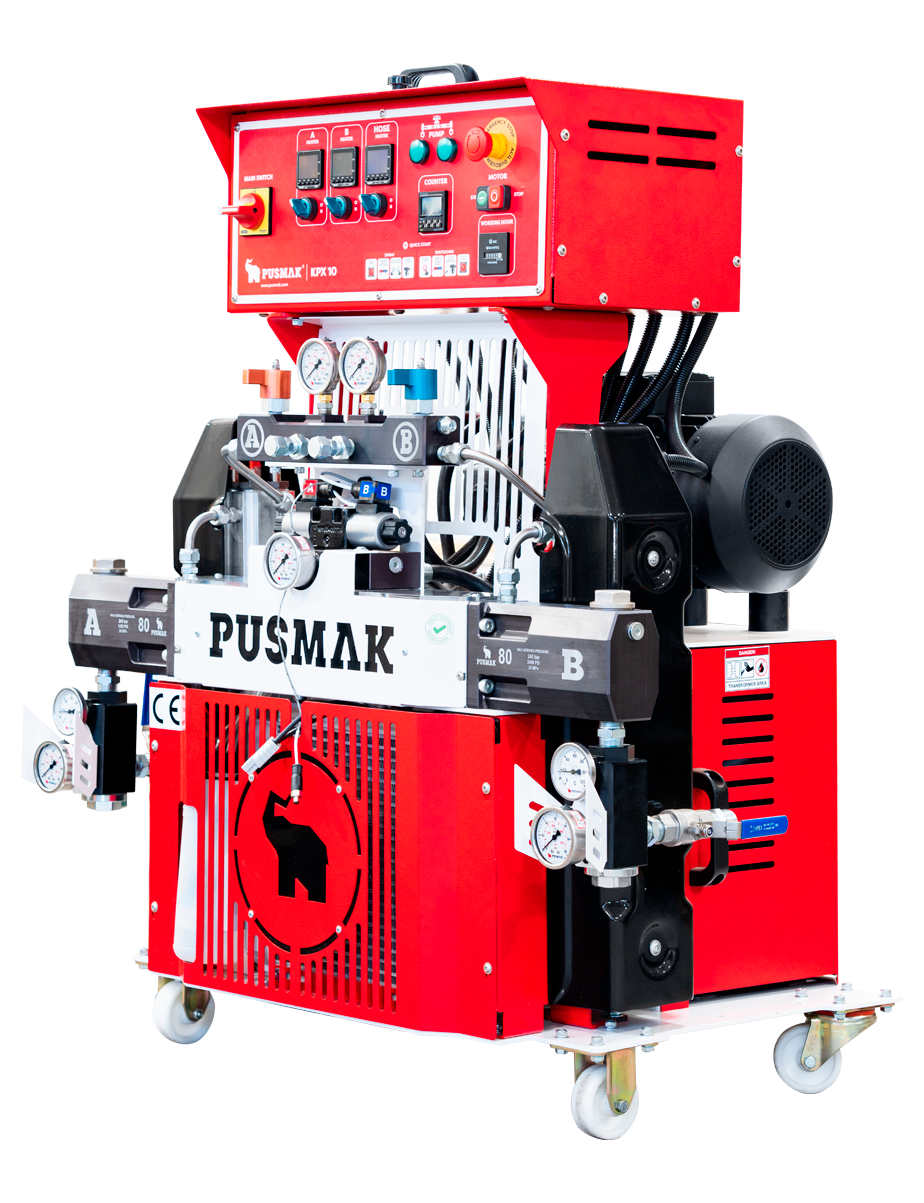

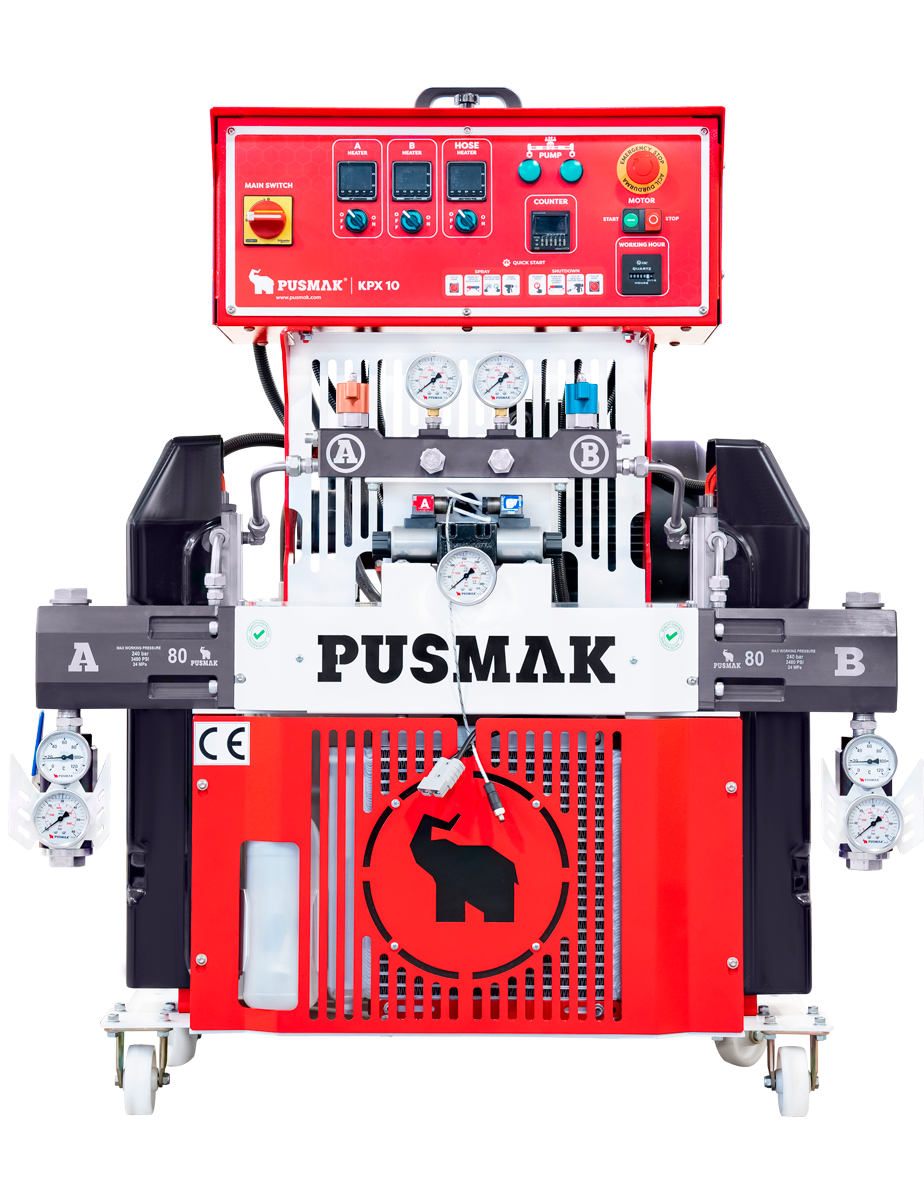

Manually controlled hydraulic spray foam insulation machine for professionals. Pusmak’s hydraulically driven KPX 10 proportioning machine is engineered and manufactured for spray foam constructors. With its precise proportioning capacity, it assures contractors with a very well-proportioned mixture of two components.
Maximum hydraulic power capacity of 160 bars and pre-heater system with total power of 11,200 watts enable users to apply spray foam in all seasons. KPX 10’s hose heating system is manufactured to enable use different

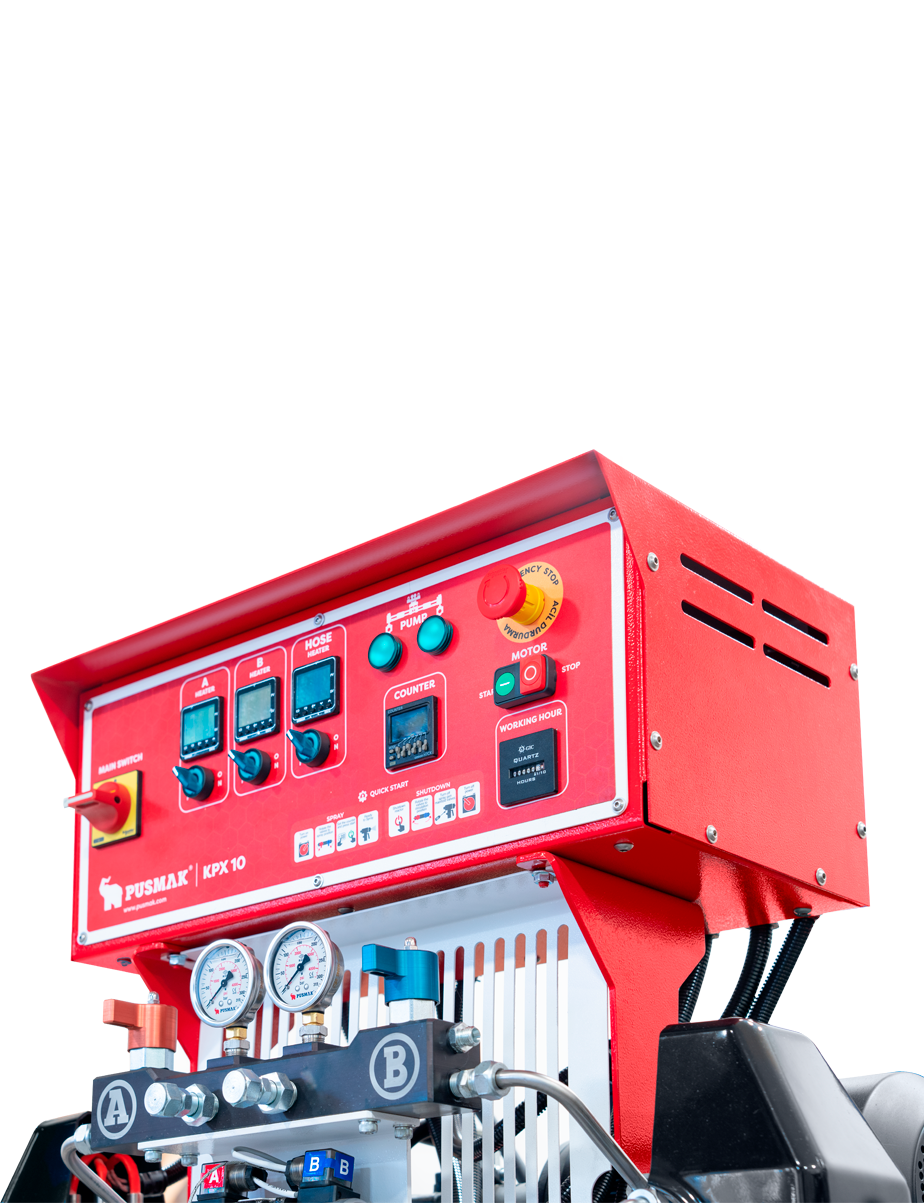

Simple design of the machine makes it easy for the user to work. The machine is coupled with a electric board to control the phases.
Spesifications of Pusmak Kpx 10 Manaul Spray Foam Machine |
||
|
|
Metric |
Imperial |
|
Weight |
305 kg |
672 lb |
|
Supply Voltage |
380 V |
380 V |
|
Number of Phases |
3 |
3 |
|
Frequency |
50/60 Hz |
50/60 Hz |
|
Preheater Power |
9,6 kW |
9,6 kW |
|
Maximum Hose Heater Power |
5,6 kW |
5,6 kW |
|
Installed Power |
20,6kW |
20,6kW |
|
Power Source |
Hydraulic |
Hydraulic |
|
Maximum Hose Length |
90 m |
295.28 ft |
|
Component Type |
Two Component |
Two Component |
|
Approximate Output Per Cycle |
230 g |
0.51 lb |
|
Maximum flow |
5,8kg/min |
12.79 lb/min |
|
Mixture Ratio |
1:1 |
1:1 |
|
Maximum Fluid Temperature |
80℃ |
176℉ |
|
Maximum Working Pressure |
160bar |
2320 psi |
|
Height |
120 cm |
47.24 in |
|
Width |
105 cm |
41.34 in |
|
Length |
75 cm |
29.53 in |
